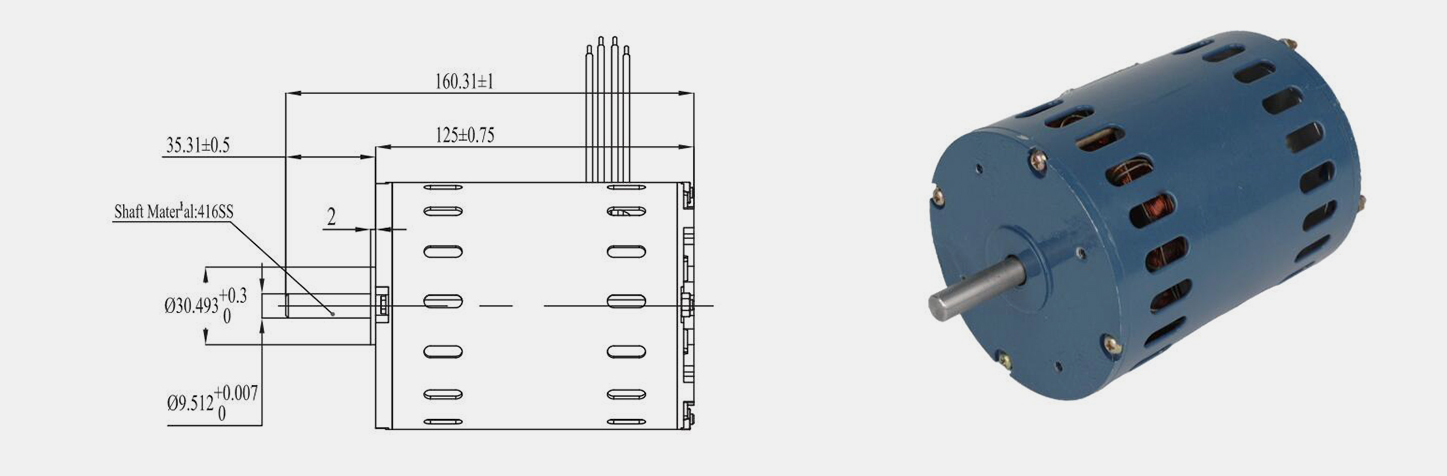

The Single Phase Induction Motor Y97125 is an electric motor powered by a single-phase AC power supply. It features a compact structure and reliable operation. It employs capacitors for starting or running to improve power factor, making it suitable for various small mechanical equipment requiring single-phase power supply.
The Y97125 motor boasts high efficiency, low noise, and low vibration, capable of stable operation within a wide voltage range. Its design takes into account energy-saving and environmental protection requirements, using high-quality materials to ensure long-term stability and durability.
The Y97125 motor is widely used in household appliances, small mechanical equipment, office equipment, and other fields, such as fans, pumps, and compressors. Its stable performance and reliable quality have won the trust and praise of users.
Retek
domein
vragen

| General Specifications | ||||
| Dielectric Strength | 1500VAC 50Hz 5mA/1S | |||
| Insulation Resistance | DC 500V/1MΩ | |||
| Ambient Temperature | -20°C to +40°C | |||
| Insulation Class | Class B, Class F | |||
| Electrical Specifications | ||||
| Unit | ||||
| Rated Voltage | VAC | 115 | ||
| Rated Speed | Rpm | 1600 | ||
| Input Power | W | 70 | ||
| Rated Current | A | 0.6 | ||
| Rated Frequency | Hz | 60 | ||
| Capacitance | μF | 7 | ||
| Weight of Motor | Kg | 2.45 | ||
| Motor Length | mm | 125 | ||
