40ZYT 40mm brushed dc motor skewed slots feature durable design with reinforced bonding

Stuur aanvraag

Features:

Skewed slot design minimizes electromagnetic vibration and noise

Reinforced bonding enhances mechanical durability

40mm compact size fits space-constrained installations

40ZYT 40mm brushed dc motor skewed slots feature durable design with reinforced bonding

Definition: Compact brushed DC motor with skewed slots and reinforced bonding technology, designed for low-noise and high-stability applications.

Productparameters

×

76ZYT 78ZYT 76mm78mm brushed dc motor

Stuur aanvraag

Features:

76mm/78mm options for torque flexibility

Removable end caps simplify maintenance

Peak power up to 800W

76ZYT 78ZYT 76mm78mm brushed dc motor

Definition: Dual-size high-power motors with modular design for easy integration and customization.

Productparameters

×

Non-permanent-magnet DC Brushed Motor 80mm Diameter for Industrial Pump with slot Type Commutator

Stuur aanvraag

High Reliability：Designed specifically for industrial environments, capable of withstanding heavy loads and vibrations.
Enhanced Cooling：Optimized cooling structure ensures stable operation even under long-term high-load conditions.
Easy Maintenance：The commutator and brushes are designed for easy inspection and replacement, reducing maintenance costs.

Non-permanent-magnet DC Brushed Motor 80mm Diameter for Industrial Pump with slot Type Commutator

This 80mm diameter Non-permanent-magnet DC Brushed Motor, specifically designed for industrial pumps, utilizes a slot type commutator and relies on an external power supply with brushes contacting the...

Productparameters

×

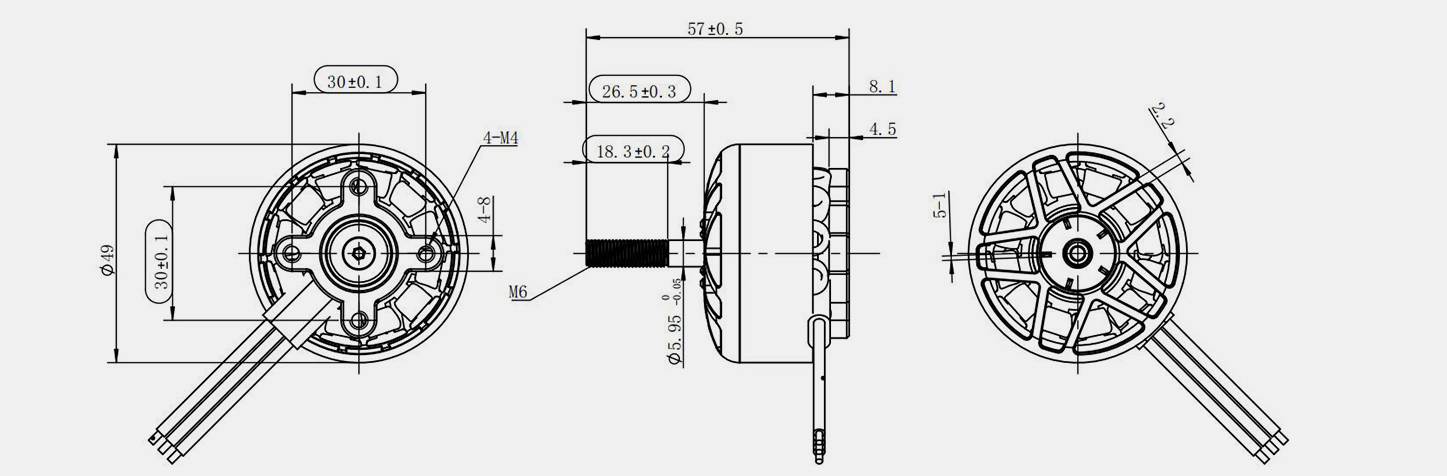

LN4214 380KV 6-85 UAV borstelloze motor voor 13 inch race-hommels

Stuur aanvraag

Elektrische specificatie.
Max. P (W)	Spanning (V)	Max. ik. EEN)	Kv	Nullaststroom (EEN)		Weerstand (mΩ)		Polen		Motor afm. (mm)		Stator afm. (mm)		Montage (mm)	NW (g)	Prop. (inch)
2121	24	34	380	1.5		576		14		φ49*32,5		φ42*14		M4-30*30	235	13"~15"
Gegevens over stuwkrachttests
Propeller	Kv Value	Gaspedaal (%)		Spanning (V)	Huidig (EEN)		Snelheid (RPM)		Stuwkracht (KG)		Koppel (NM)		Ingangsvermogen (W)		Efficiëntie (G/W)
GEMFAN 1308*3	380 kV	10%		24	0.184		859		0.0279		0.010		4.4		6.309
		20%		23.99	0.623		1788		0.1207		0.031		14.9		8.082
		30%		23.99	1.437		2708		0.2961		0.072		34.5		8.600
		40%		23.98	2.588		3536		0.5128		0.116		62		8.278
		50%		23.96	4.434		4393		0.7981		0.179		106.2		7.525
		60%		23.94	7.498		5286		1.1673		0.258		179.5		6.508
		70%		23.92	11.142		6106		1.5620		0.344		266.5		5.864
		80%		23.89	15.405		6835		1.9759		0.433		368		5.370
		90%		23.85	20.898		7573		2.4480		0.534		498.5		4.911
		100%		23.81	26.668		8213		2.8856		0.630		635.1		4.544
GEMFAN 1310*3	380 kV	10%		24.01	0.18		847		0.0239		0.014		4.3		5.539
		20%		24	0.708		1781		0.1251		0.042		17		7.367
		30%		23.99	1.668		2664		0.3160		0.093		40		7.900
		40%		23.98	3.104		3458		0.5413		0.152		74.4		7.278
		50%		23.96	5.481		4293		0.8513		0.2310		131.3		6.490
		60%		23.99	9.362		5159		1.2510		330		224.1		5.585
		70%		23.98	13.856		5924		1.6492		0.437		331.3		4.979
		80%		23.95	19.353		6644		2.1044		0.549		462		4.555
		90%		23.93	25.502		7287		2.5593		0.666		607.8		4.211
		100%		23.88	32.034		7869		2.9946		0.768		762.1		3.929
GEMFAN 1310*3	640kV	10%		24.81	0.409		1336		0.0768		0.0299		9.8000		7.8180
		20%		23.73	1.865		2708		0.3374		0.1001		44.7000		7.5440
		30%		23.63	4.803		3946		0.7408		0.2051		115.0000		6.4420
		40%		23.53	9.285		5007		1.2049		0.3214		222.2000		5.4240
		50%		23.42	17.318		6131		1.8117		0.4789		413.5000		4.3840
		60%		23.5	28.207		7158		2.4977		0.6519		671.5000		3.7200
		70%		23.62	40.854		8027		3.1604		0.8238		969.3000		3.2610
		80%		23.67	58.755		8840		3.8649		1.0092		1388.3000		2.7840
		90%		23.	73.77		9411		4.3715		1.1529		1736.0000		2.5180
		100%		23.7	90.573		9878		4.8917		1.2935		2121.3000		2.3060

LN4214 380KV 6-85 UAV borstelloze motor voor 13 inch race-hommels

De LN4214 380KV 6-85 UAV borstelloze motor is een krachtige motor die speciaal is ontworpen voor 13-inch racedrones. Door gebruik te maken van borstelloze motortechnologie biedt hij efficiëntie, st...

Productparameters

×

LN13720-serie 24S borstelloze dronemotor (34KV / 38KV) – krachtige UAV-motor met hoog vermogen

Stuur aanvraag

LN13720-serie 24S borstelloze dronemotor (34KV / 38KV) – krachtige UAV-motor met hoog vermogen

De LN13720-serie 24S borstelloze dronemotor is ontworpen voor krachtige, zware UAV-toepassingen . Met 34KV- en 38KV-opties levert deze motor een uitzonderlijk koppel en efficië...
